Drafting Solutions





















Floor plans can start with an idea or a design or some existing conditions. We can measure your existing conditions and generate floor plans for you. Existing conditions floor plans can be used for 3D designing a new space from the old or restoring original conditions. After you have completed the design phase, we can generate final floor plans for submission to builders and zoning for approval.

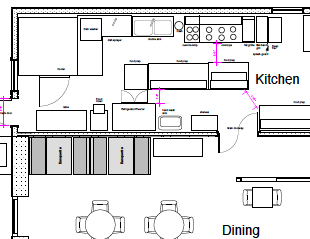

Existing conditions of a business restaurant kitchen.

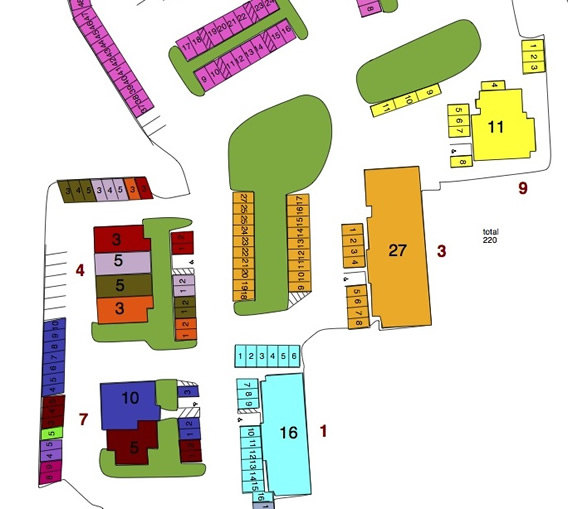

Other projects have been business plaza parking plans, waste water collection system mapping.
